- Model:
- U Series TLU2HP 01H 004J-50
- Processing customization:
- Yes
- Species:
- Military connector
- Operating frequency:
- low frequency
- Scope of application:
- Military industry/aerospace
- Interface type:
- Pin/Jack
- Shape:
- circular
- Line length:
- according to customer needs mm
- Production technology:
- machining
- Features:
- convenient and fast
- Contact material:
- Brass chrome plating
- Insulator material:
- PPS/PEEK
- Core number:
- according to product specifications
- Needle count:
- according to product specifications
- Minimum number of packages:
- 1
- Whether cross-border source of goods:
- No
- Application field:
- Military industry/aerospace

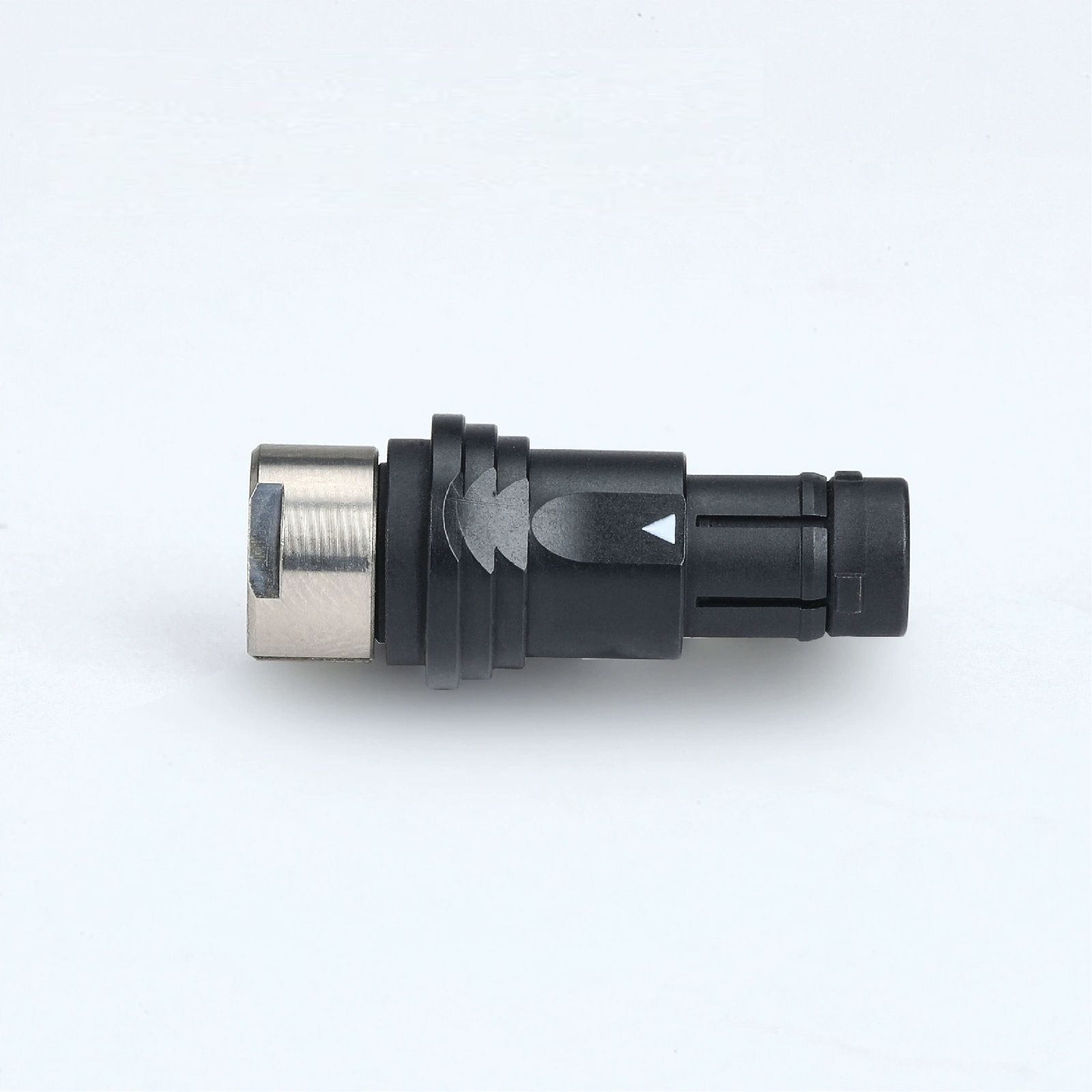

USeries Connector Contentproduct presentation
Useries connector is a combination ofBseries positioning pin structure andFseries split-leaf spring structure produced by multi-key multi-positioning structure push-pull self-locking connector, the connector is mainly used for electronic equipment in the low frequency signal transmission, with small size, easy to operate, good shielding effect, good sealing, three-key positioning and five-key anti-misinsertion, solid shell, anti-electromagnetic interference, good environmental performance, long service life and other characteristics. Widely used in medical machinery, communication systems, computers, small communications and other equipment.
USeries Connector Performance
Mechanical life:5000times
Vibration: frequency10-2000Hz, acceleration147m/s’,≤1 uminstantaneous break
Impact: Acceleration490m/3,≤1uminstantaneous break
Operating temperature:-55°C~ +145°C
Relative humidity: 95% at40°C
Working pressure:4.39KPa ~ 101.33KPa;
Hermeticity: socket: differential pressure1.01×105Pa, no bubble leakage for1min(flange0.2×105Pa);head socket insertion:1.5 mwater depth,24hno water seepage(plug tail needs to be sealed protection treatment);salt fog:5%NaClfog96hours:
Insulation resistance:5000MQ(normal)
